Create a custom Service Catalog

Outcome: Select a draft custom Asset Type, add an approved catalog entry, and save the catalog.

For: Customer administrators and data model owners
Permission: update service_catalog
Time: 10–20 minutes
Changes made: Creates shared catalog data for a draft Asset Type

If you're stuck

Confirm the custom Asset Type is saved and still Draft.
Select the Asset Type before selecting Add.
Search the selected catalog for the same provider or manufacturer before adding another entry.

Before you start

Complete the draft Asset Type's sections, fields, dependencies, and catalog support.
Keep the Asset Type unpublished.
Gather the approved catalog names and source references.
Search for existing entries before adding a new one.

Field and option guide

UI item	Purpose	What to select or enter	Where it appears later
Asset Type selector	Chooses the catalog workspace	The intended custom Asset Type with Draft status	Catalog heading and Asset fields
Add	Starts one catalog record	Select only after confirming the Asset Type	Entry form
Entry type	Establishes the record's role in the hierarchy	The supported provider, manufacturer, model, module, software, specification, or attribute type	Catalog hierarchy and compatible Asset choices
Name	Identifies the entry	Canonical approved name; avoid abbreviations that create duplicates	Catalog list and Asset selector
Description	Explains the entry	Short identifying context; no credentials or secret data	Entry details
Save	Stores the entry	Submit once after reviewing parent and type	Selected catalog after refresh

Start the catalog

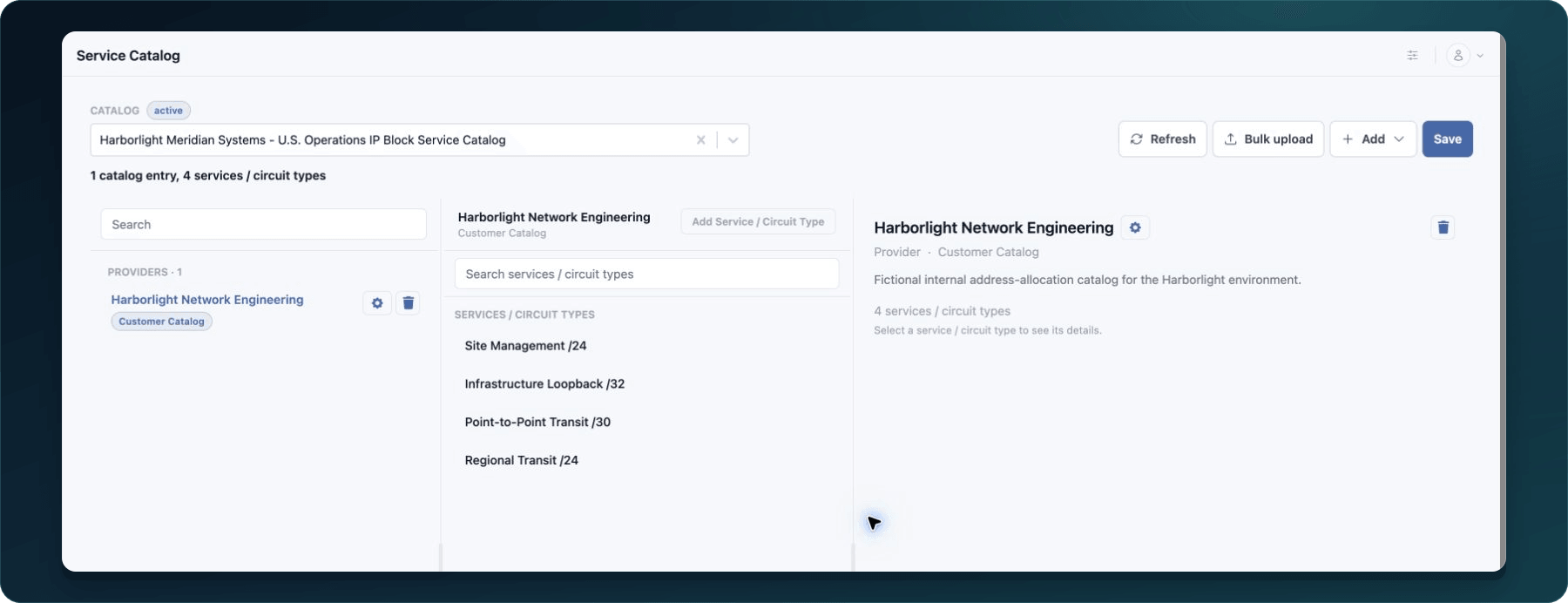

Open Administration → Service Catalog.
Use the catalog selector to choose the draft custom Asset Type.
Confirm the selected type is the intended draft.

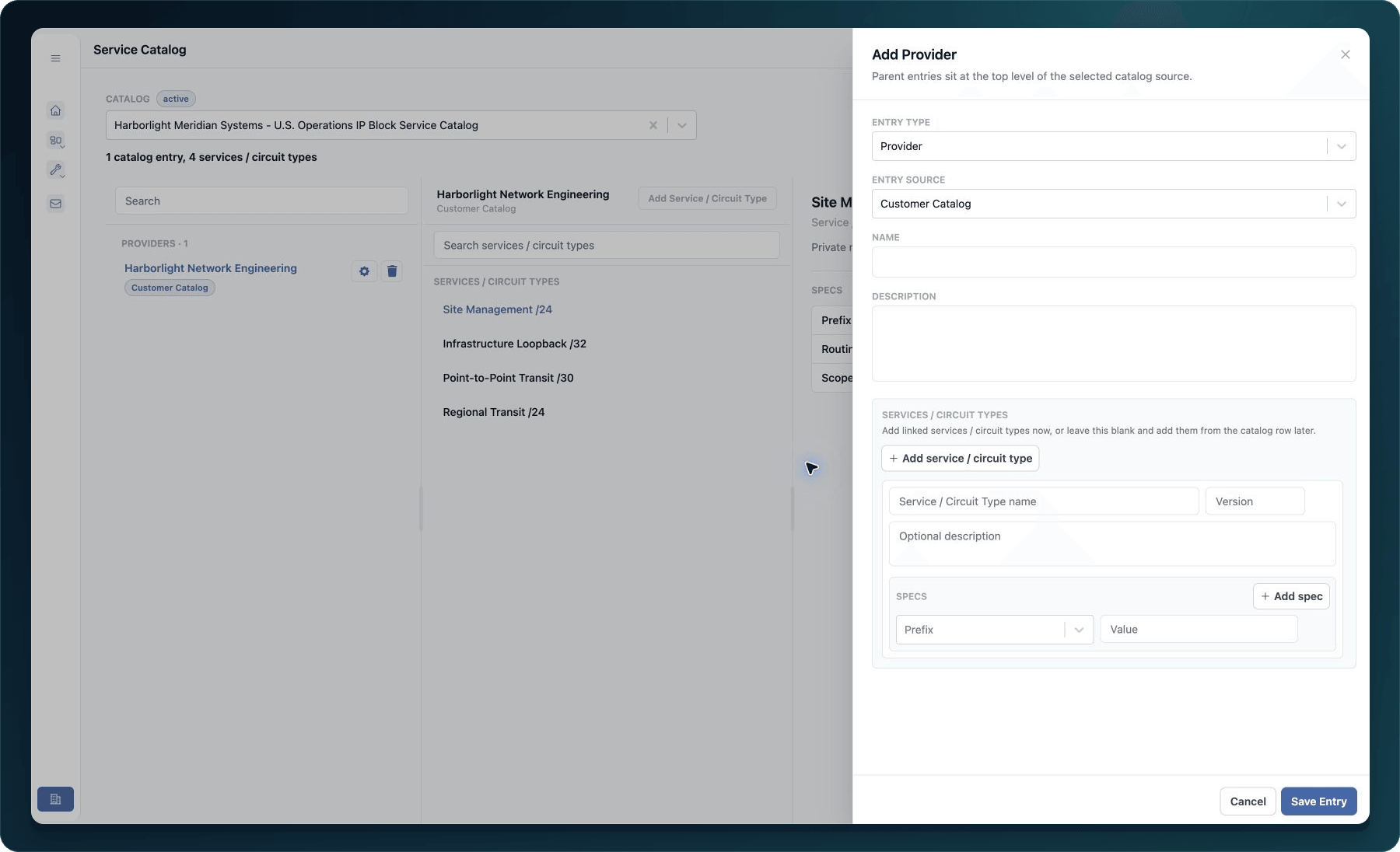

Select Add.
Choose the entry type required by the schema.
Enter the canonical name and description.
Add only approved specifications or attributes.

Select Save.

Expected result: The entry appears in the selected Asset Type's catalog after a refresh.

If the Asset Type is unavailable, confirm that it was saved as a customer draft and that your role includes Service Catalog access. A published custom type may no longer allow catalog editing.

Check your result

Select Refresh.
Re-select the draft Asset Type.
Find the entry by its exact name.
Open it and confirm the saved details.

Undo this change

Edit or remove an unused custom entry only while the draft lifecycle permits it and after checking dependencies and compatibility. Do not remove an entry already selected by test or customer assets without an impact review.

Learn and continue

Learn: Understand Asset Types and Service Catalogs
In WanAware: Open /administration/service-catalog in your WanAware workspace.

Next steps

Get help

Email [email protected] and include:

Company, affected user, page URL, timestamp, and time zone
Draft Asset Type ID, catalog entry name, and entry type
Reproduction steps and the exact error

Never send passwords, credentials, tokens, or secret values.
