Configure Asset Type sections and fields

Outcome: Build a draft Asset Type that collects the right information in a clear order.

For: Customer administrators and data model owners
Permission: update asset_types_builder
Time: 15–30 minutes
Changes made: Changes a shared draft schema

If you're stuck

Confirm the Asset Type is still a draft. Publishing can make the schema read-only.
Build and save the parent field before configuring a dependent field.
If catalog support is needed, enable it before loading Service Catalog data.
Do not publish merely to preview an unfinished form.

Before you start

Confirm the Asset Type is still a draft.
List the minimum fields needed for the first customer workflow.
Decide which values should come from Service Catalog instead of free text.
Identify any field dependencies before adding catalog data.

Field and option guide

Builder item	Purpose	How to configure it	What customers see later
Name	Identifies the Asset Type	Use a unique record-type name	Asset Type picker and Asset details
Description	Explains the intended records	State what belongs and what does not	Asset Type administration
Section	Groups related fields	Use a task-based label and place fields in completion order	A detail tab or section on the Asset
Field label	Names the customer input	Use the term customers already know	Asset form label
Field type	Controls the accepted input	Choose the type matching the real value; changing it later can invalidate data	Input control and validation
Required setting	Blocks incomplete records	Enable only for information that must always exist	Save validation
Dependency	Filters or reveals a field from another value	Select the saved parent field and the controlling value	Child choices after the parent is selected
Catalog support	Backs the field with managed catalog choices	Enable before adding the related catalog data	Catalog-backed selector on an Asset
Field order	Sets the completion sequence	Put identity and parent fields before dependent details	Asset detail layout

Configure the draft

Open Administration → Asset Types (/administration/asset-types).
Select the draft Asset Type.
Confirm its Name and Description.

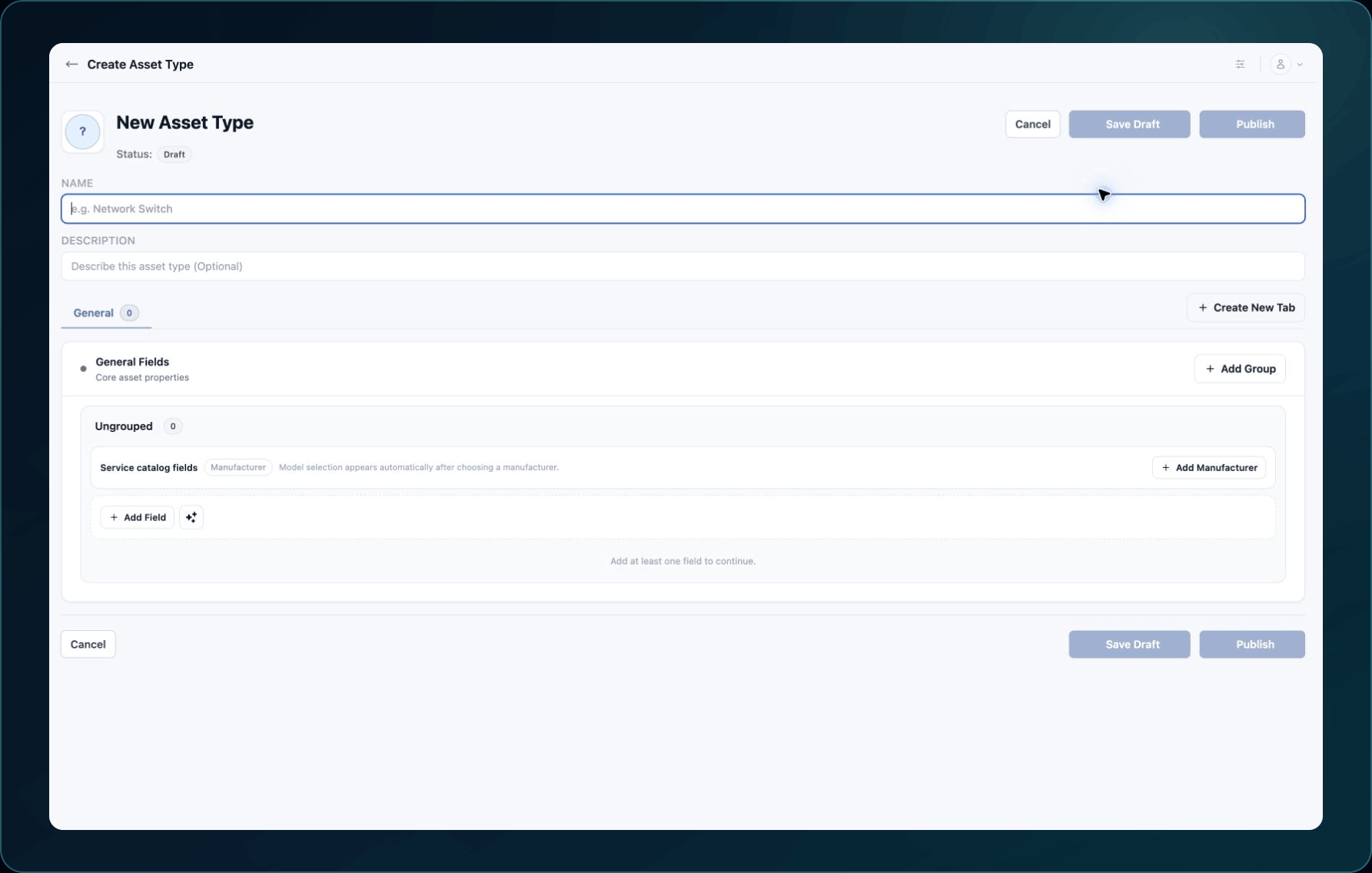

Draft Asset Type builder showing name, description, tabs, groups, Service Catalog support, and field actions.
4. Add or rename sections so each one represents a clear group of details.
5. Add fields to the appropriate section.
6. Give each field a customer-facing label and choose its supported input type.

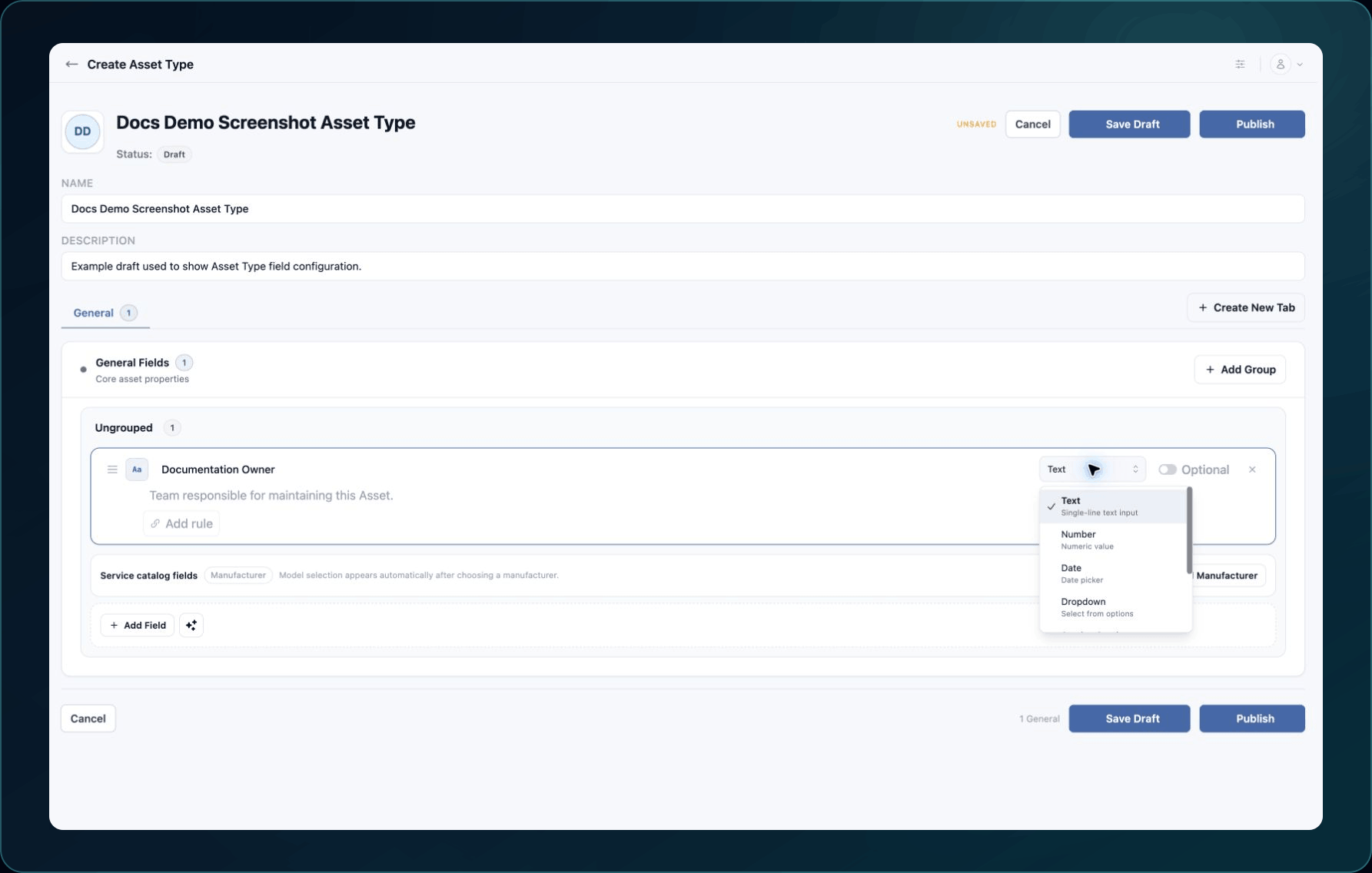

Asset Type field editor showing an example field and the available field-type menu.
7. Configure required status, validation, default behavior, and help text where available.
8. Add dependencies only when one value legitimately controls another.

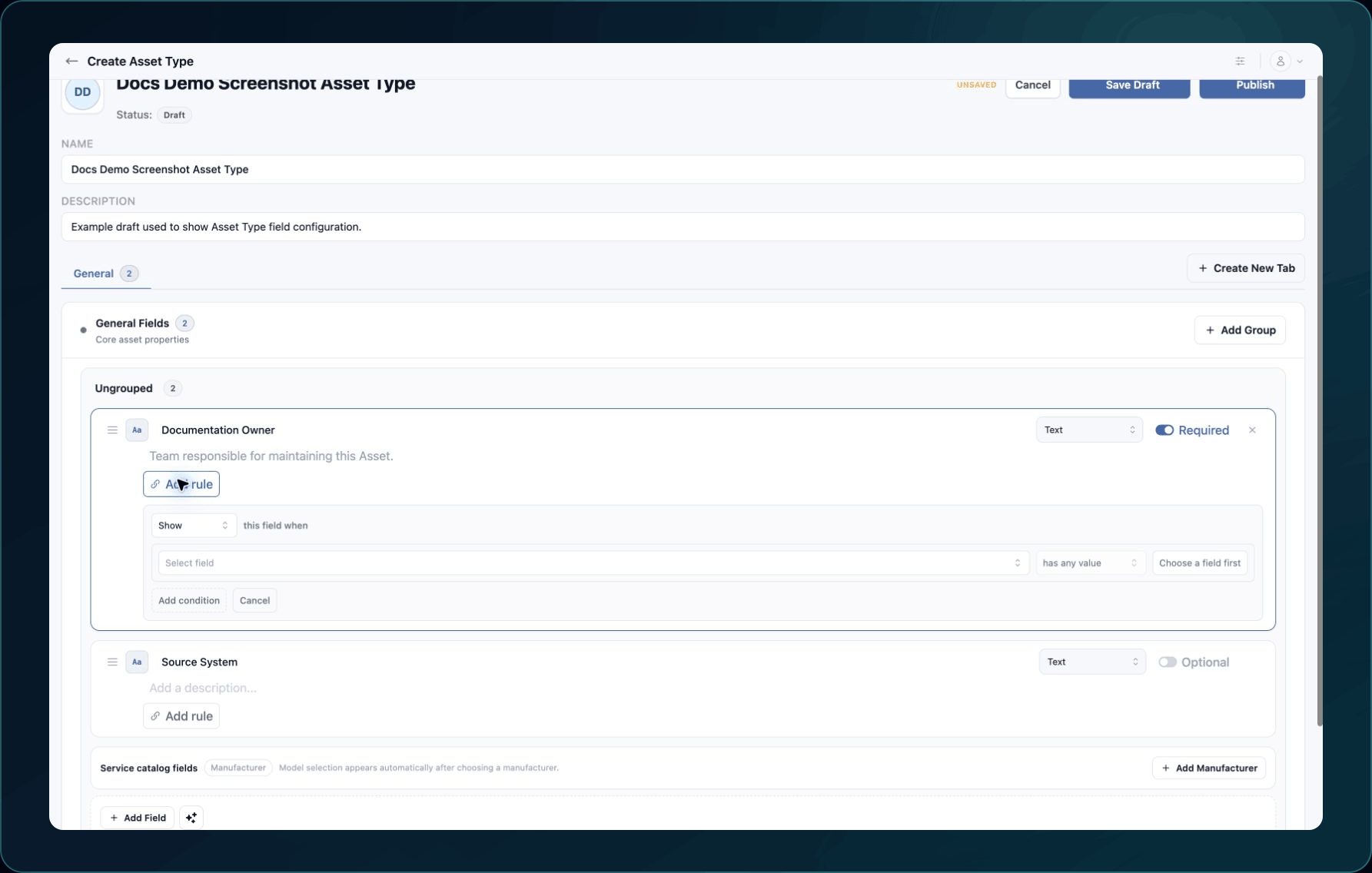

Asset Type field editor showing required state and a conditional visibility rule builder.
9. Enable catalog support for fields that should use managed Service Catalog choices.
10. Review the field order from the perspective of the person completing an asset.
11. Select Save Draft or Save Changes.

Expected result: The saved draft reopens with the intended sections, field order, dependencies, and catalog support.

If a dependent field has no valid parent or a required setting conflicts with the input type, correct the field before continuing. Do not publish to test an unfinished configuration.

Check your result

Reopen the draft and verify every section and field. Then open Administration → Service Catalog and confirm the draft Asset Type can be selected.

Undo this change

While the Asset Type is a draft, restore the previous setting or remove an unused field after confirming no test data depends on it. After publication, schema editing may be unavailable; contact Support before attempting a replacement strategy.

Learn and continue

Learn: Understand Asset Types and Service Catalogs
In WanAware: Open Administration → Asset Types (/administration/asset-types) and select a draft Asset Type.

Next steps

Get help

Email [email protected] with your company, affected user, draft Asset Type ID, section and field labels, page URL, timestamp and time zone, reproduction steps, and exact error. Never send passwords, credentials, tokens, or secret values.
